The YK-300R is a versatile screen printing machine designed for a wide range of applications, including daily necessities, toys, electronics, electrical appliances, plastics, leather, metals, glass, light industrial products, and food packaging industries.
N º de Modelo :
YK-300Rnombre del producto :

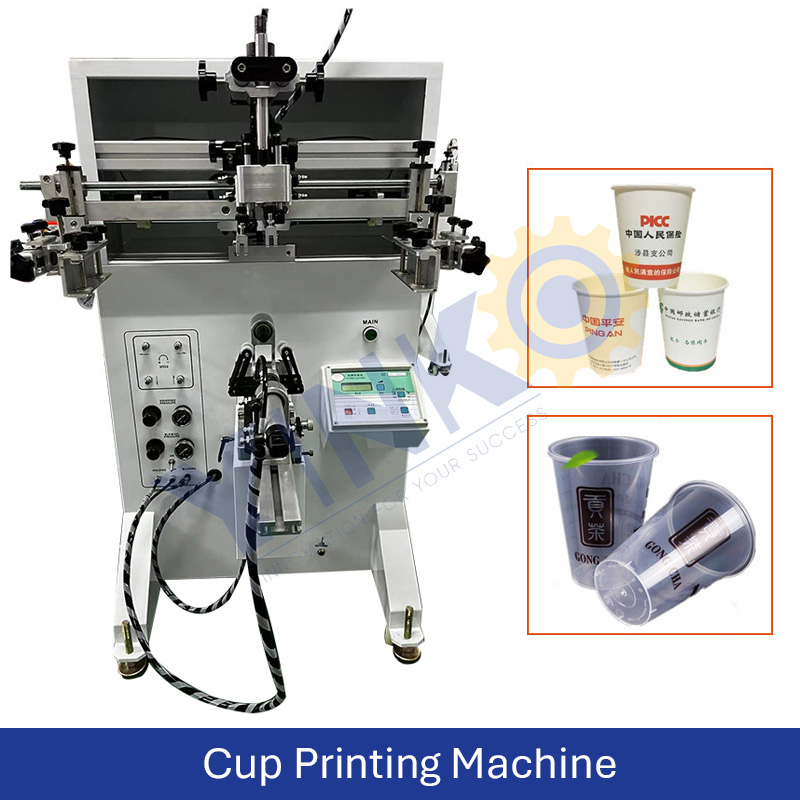

Cup Printer MachineVoltaje :
220V 50HZ 1PhaseCapacidad de producción :
1200pcs/hourUso :

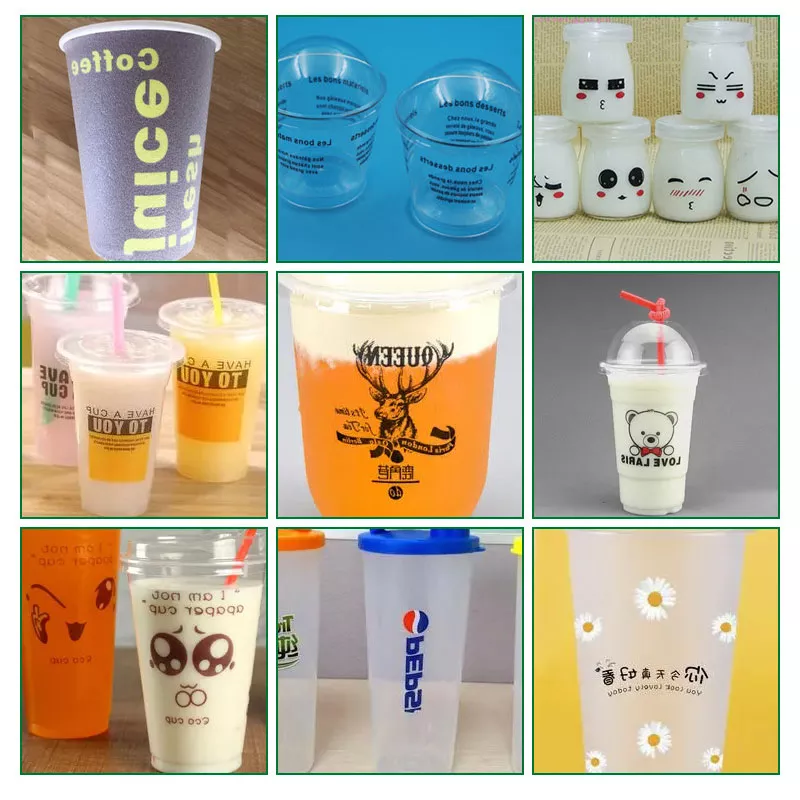

drinking cup printingPuerto de embarque :
Shanghai,Ningbo,Shenzhen,Tiempo de espera :
10 daysPeso :
120KgThe YK-300R is a versatile screen printing machine designed for a wide range of applications, including daily necessities, toys, electronics, electrical appliances, plastics, leather, metals, glass, light industrial products, and food packaging industries.
Key Features:
• Comprehensive Printing Capabilities

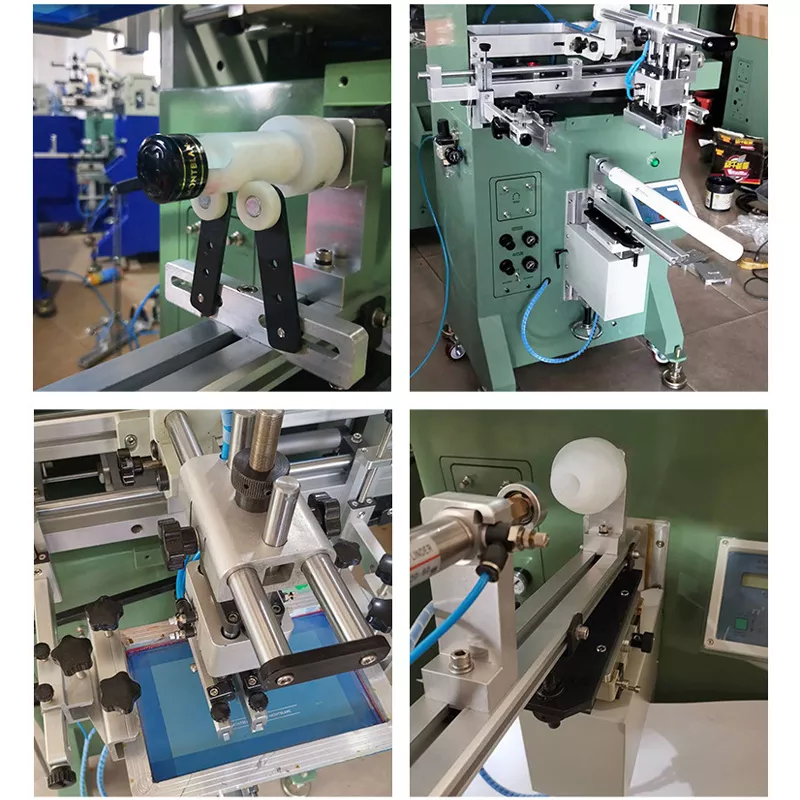

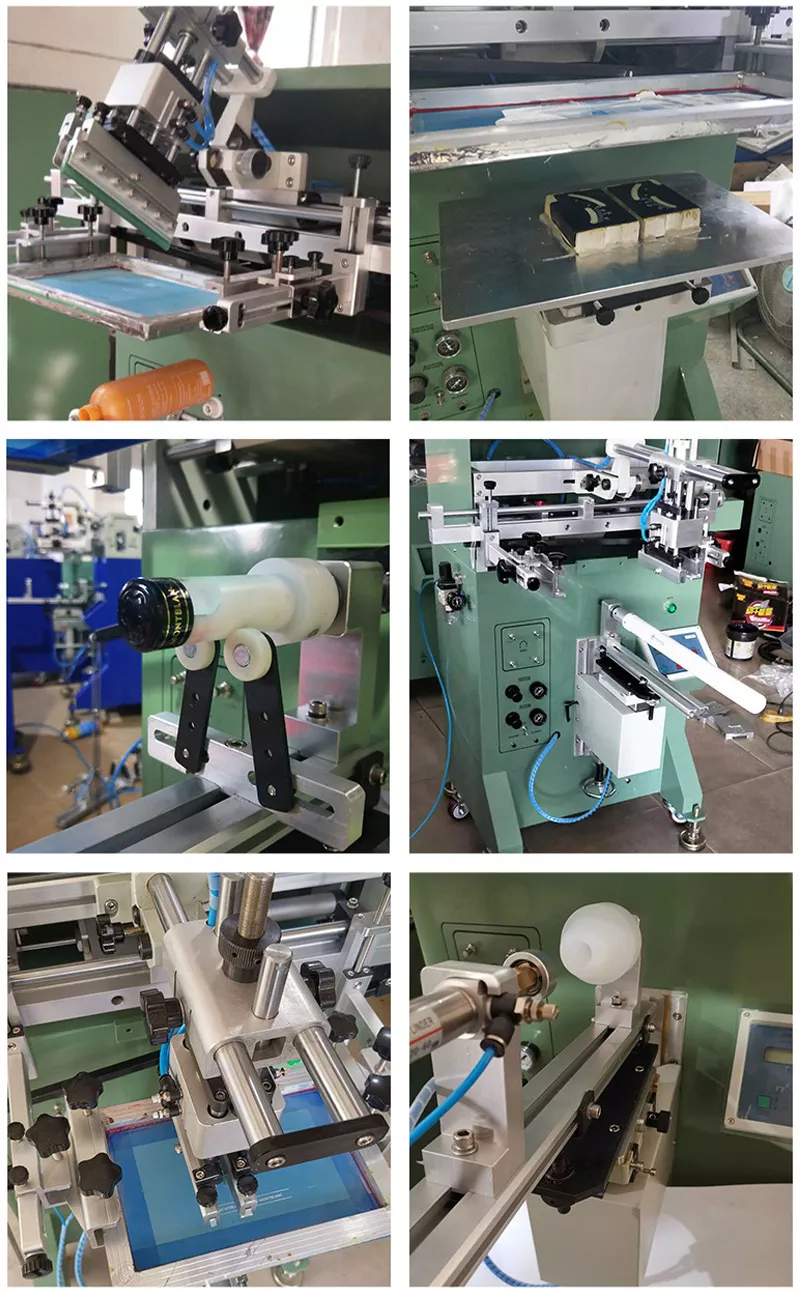

Capable of printing on cylindrical, conical, and large-radius curved surfaces with high precision.
• Advanced Optical Positioning System
Equipped with photoelectric sensors for accurate alignment and superior performance.
• Stable and Reliable Operation
Controlled by a microprocessor-based system for consistent and efficient printing.
• User-Programmable Modes
Two preset operation modes:
Single-Cycle Printing (for manual adjustments)
Fully Automatic Printing (for continuous production)
• Premium Pneumatic Components
Utilizes high-performance German and Japanese pneumatic systems for smooth, powerful, and long-lasting operation.

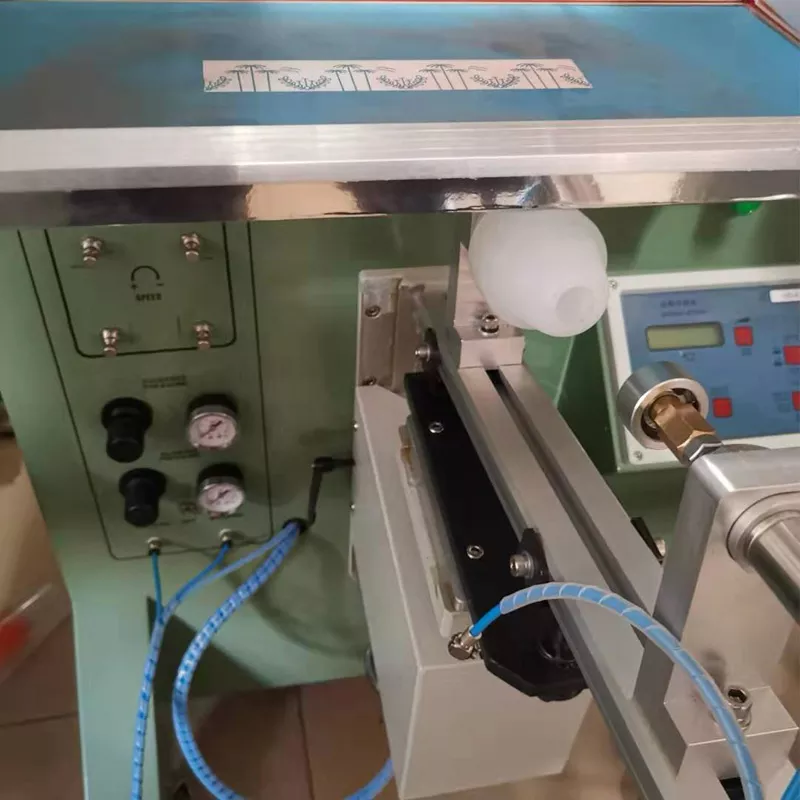

• Intuitive Touch-Control Panel
Features a sensitive touch interface for quick function selection and ease of use.
Technical Advantages:
• High Adaptability—Suitable for diverse materials and complex surface geometries.
• Precision Engineering—Ensures repeatable accuracy in high-volume production.
• Durability—Built with industrial-grade components for extended service life.
Ideal for manufacturers seeking a robust, high-efficiency screen printing solution for curved and irregular surfaces.
|
No. |
Parameter |
Specification |
|
1 |
Printing Colors |
1-color |
|
2 |
Single-Cycle Mode |
Supported |
|
3 |
Continuous Operation |
Supported |
|
4 |
Counter |
Supported |
|
5 |
Speed Adjustment |
Adjustable (0 ~ 9 levels) |
|
6 |
Component Delay Settings |
Adjustable (0 ~ 9 levels) |
|
7 |
Printing Speed |
1,200 impressions/hour |
|
8 |
Maximum Screen Frame Size |
350mm × 500mm |
|
9 |
Maximum Printing Area |
Φ90mm (full circle) or 200×300mm |
|
10 |
Worktable Vertical Stroke |
160mm |
|
11 |

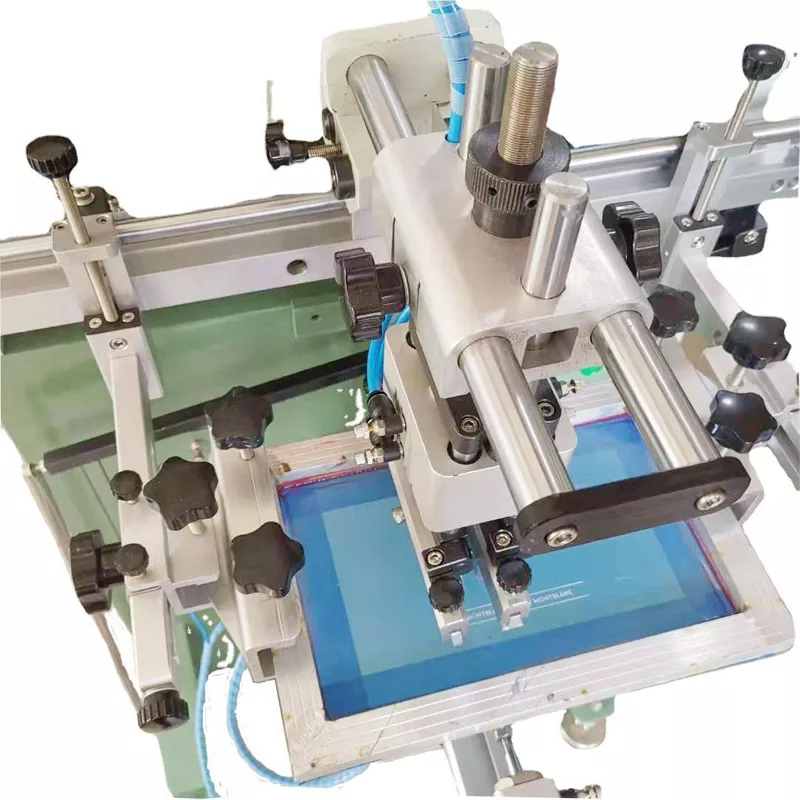

Squeegee Horizontal Stroke |
300mm |
|
12 |
Squeegee Vertical Stroke |
25mm |
|
13 |
Drive System |
Pneumatic |
|
14 |
Control System |
Microprocessor-based |
|
15 |
Control Voltage |
12VDC |
|
16 |
Power Supply |
220VAC / Single-phase |
|
17 |
Power Consumption |
20W |
|
18 |
Air Supply Pressure |
6 bar (87 psi) |
|
19 |
Air Consumption per Cycle |
2.1 liters |
|
20 |
Machine Dimensions (L×W×H) |
720mm × 760mm × 1220mm |
|
21 |
Net Weight |
120 kg |
✔ High-Speed Production—Capable of 1,200 prints/hour for efficient output
✔ Precision Control—Microprocessor-managed with adjustable speed & delay settings
✔ Versatile Printing—Supports Φ90mm full-circle or 200×300mm flat-area printing
✔ Robust Pneumatic Drive—Reliable 6-bar air pressure system with low consumption
✔ Compact & Durable—Industrial-grade construction in a space-saving footprint
Ideal for high-volume curved & flat surface printing across multiple industries.
The HY-300R Curved Surface Screen Printing Machine is designed for high-precision printing on cylindrical, conical, and large-radius curved surfaces, making it ideal for industries such as
