Efficient thermoforming machine for producing plastic cup lids using PET, PVC, HIPS, or PLA. Supports multi-cavity molds with max forming area of 450×130mm. Integrated forming, punching, and cutting. Ideal for food, beverage, and medical packaging. Compact design, stable output, and customizable for various lid shapes.
N º de Modelo :
YK-TF450Snombre del producto :
Plastic cup lid forming machineVoltaje :
380V 3P 50HZCapacidad de producción :
15-35 cycle/minUso :
to produce plastic lids,medicine/food/daily/electronics/hardwarePuerto de embarque :
Shanghai/ningbo portTiempo de espera :
35daysPeso :
1100kg

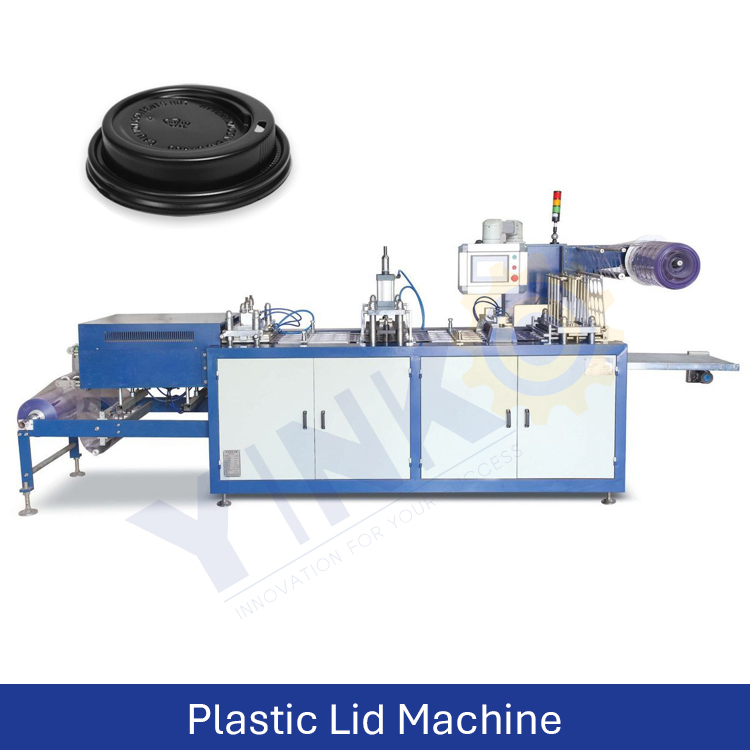

This machine is designed for automatic thermoforming of plastic cup lids, using PVC, PET, HIPS, and PLA sheets.

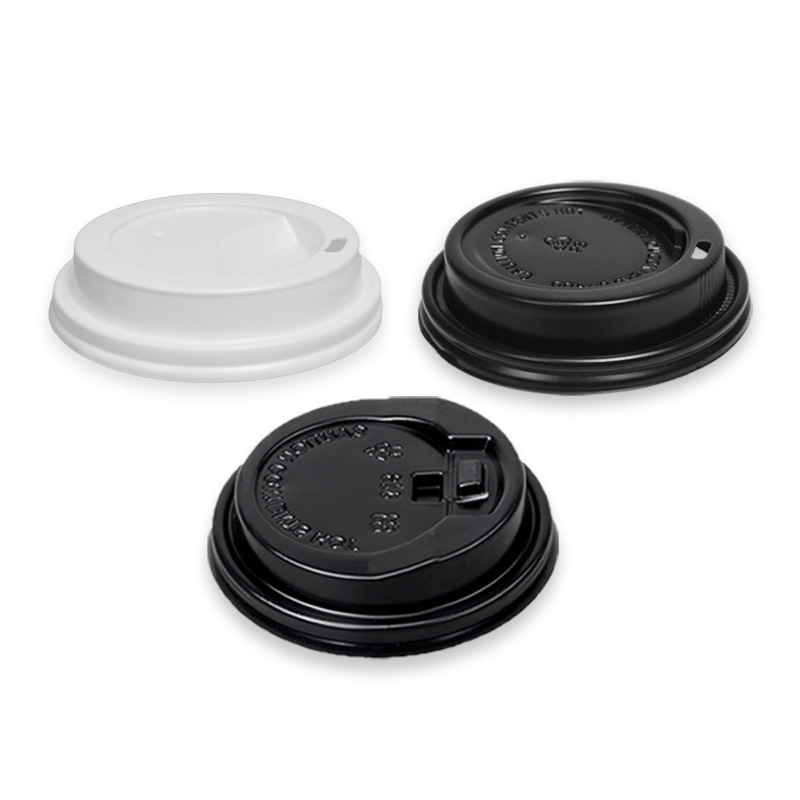

It is capable of producing a wide range of cup lids, including
Flat lids with straw holes
Dome lids for cold drinks
Sip lids for hot beverages
Medical trays and packaging bases (optional mold design)
Widely used in food & beverage packaging, pharmacy, hardware blister, and daily-use disposable product lines.
✅ Max Forming Area: 450mm (L) × 130mm (W) × 46mm (D)
This large forming size allows multi-cavity mold configurations, ideal for mass production of small-to-medium-sized cup lids or shallow trays.
With 15–35 cycles per minute, the machine delivers stable output for both high-speed and precision-required projects.

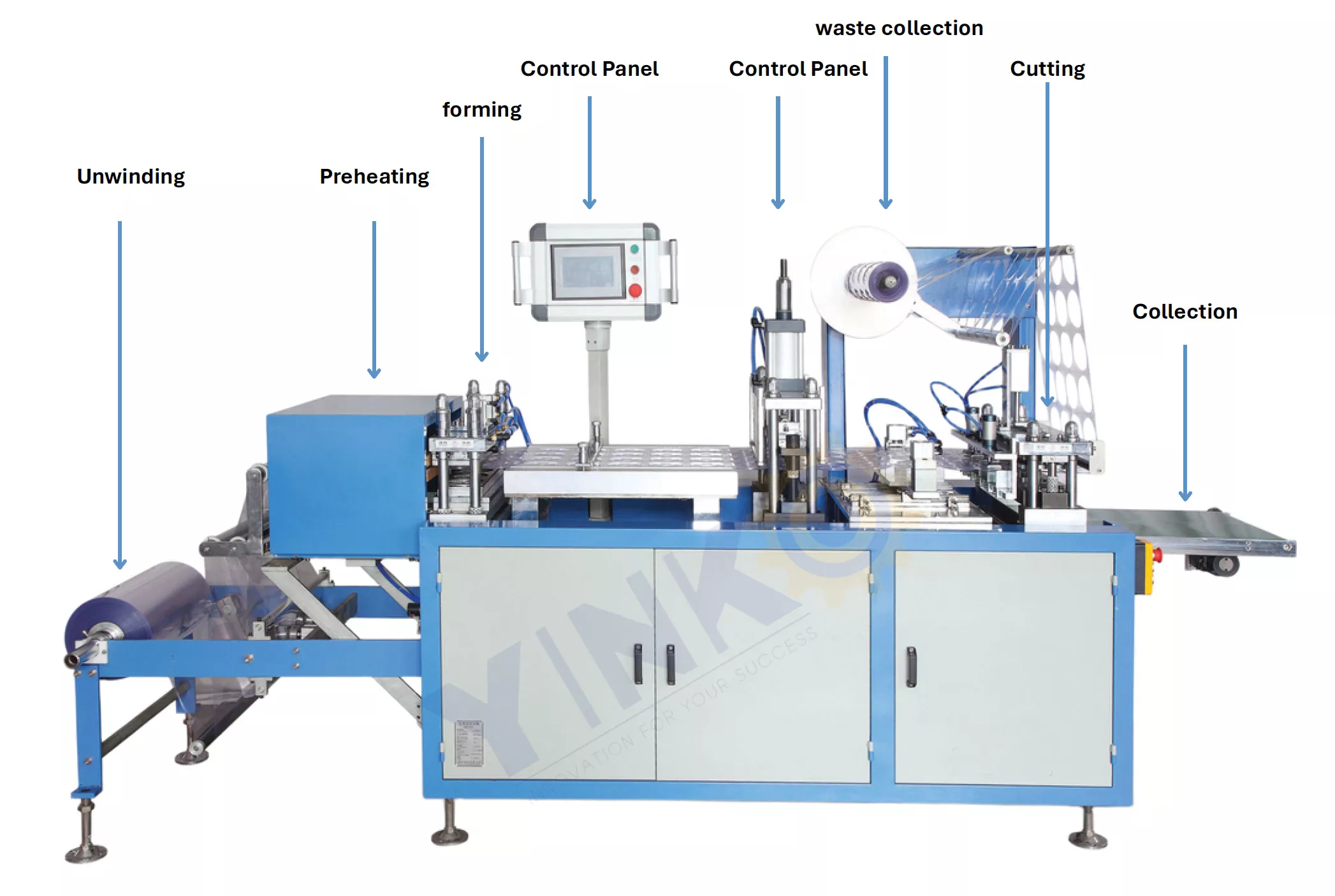

This machine integrates
Roll-fed sheet unwinding
Pre-heating and vacuum/pressure forming
Hole punching and edge cutting
Finished lid counting and stacking
 |
All processes are synchronized via PLC control with an HMI touchscreen, ensuring high accuracy and minimal material waste.
Material Compatibility: PVC, PET, HIPS, PLA
Forming Speed: 15–35 cycles/min
Power: 4 kW total
Air Requirement: 0.6–1.0 MPa / ≥ 0.6m³/min
Cooling Requirement: 60L/h tap or circulating water
Machine Size: 2600×1100×1700 mm
Machine Weight: 1100 kg
Centralized lubrication system
Adjustable stroke and pressure
Safety-enclosed structure with CE compliance
Easy mold exchange and maintenance
Auto scrap rewinding (optional)
 |
Beverage cup lid factories
Fast food packaging manufacturers
Disposable medical tray producers
Electronics or hardware blister suppliers
OEM/ODM packaging solution providers
 |
 |
 |
 |
